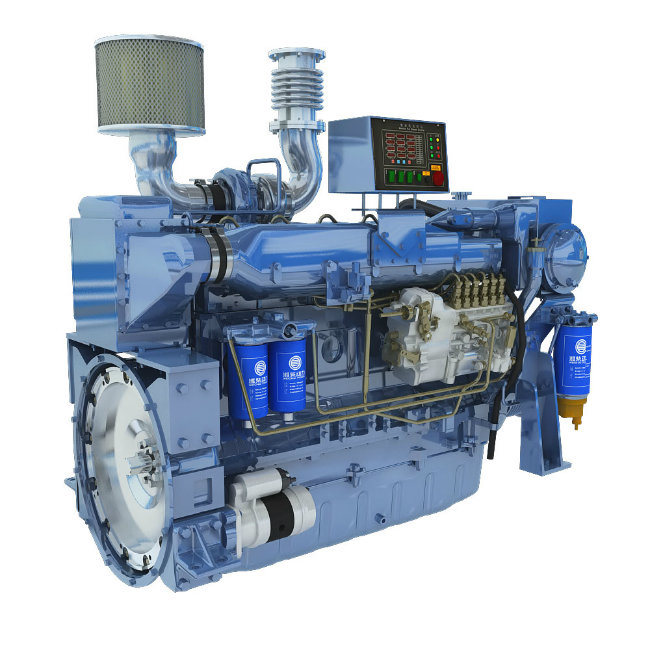

Weichai Marine Propulsion Engine WD615.46C-1 and spare parts

General Information of Weichai WD615.46C-1 Marine Propulsion Engine
Engine Model WD615.46C-1
Engine Type 6 Cylinders in Line
Displacement 9.726 L
Bore*Stroke(mm) 126 * 130
Net Weight (with flywleel & alternator) 1056Kg
Overall Diemension(L*W*H) 1440mm*774mm*1400mm
Rotation direction of crankshaft Clockwise
Start mode Electric start
Technical Specification of Weichai WD615.46C-1 Marine Propulsion Engine
Marine Certification CCS
Aspiration Turbocharged and intercooled
Governor Mechanical
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling System Sea and fresh water duel-circulation cooling system
Performance Data of Weichai WD615.46C-1 Marine Propulsion Engine
Rated Power/Speed 240kW/2100rpm
Min. fuel oil consumption ≤220g/Kw.h
Lub oil and fuel consumption ratio ≤0.8%
As optional of  Weichai WD615.61C-1 Marine Propulsion Engine
Control Panel As optional
Marine Gearbox As optional of Advance or Fada
