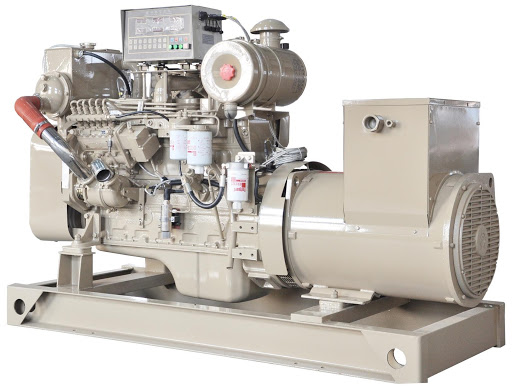

Cummins 120kw Marine Diesel Generator Set 50HZ,3P,4W,400/230V. 1500r.p.m

MODEL CCFJ120
Prime Power (50Hz) 120KW 150 KVA
Standby Power (50Hz) 132KW 165 KVA

Generator Ratings

Voltage(V) Hz Phase P.F

(cosC)

Prime Amps (A) Prime Ratings

(KW/KVA)

415 240 50 3 0.8 209 120 150
400 230 50 3 0.8 217 120 150
380 220 50 3 0.8 228 120 150

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528) ; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Standards

● GB/T13032-1991, ISO9001:2008 and CE Quality Control System.

● As to Classification Society, PRIME POWER supply CCS as standard; ABS,BV,BKI,NK or LR is optional.


Engine Specification

Manufacturer / Model: Cummins 6CTA8.3-GM155,4-cycle,Water Cooled.
Air Intake System: Turbo, After-cooled
Cylinder Arrangement: 6 cylinders in line
Displacement: 8.3L
Bore and Stroke: 114*135(mm)
Fuel Consumption at 100% Load : 214 g/kw.h
Rated RPM: 1500rpm
Max. Standby Power:155KW/210HP
Governor Type: Electronic Speed Control System


Alternator Specification

Alternator Model HCM274G
Power Capacity 150kVa
Efficiency 95.8%
Type Brushless, Self-excited and AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23(IP44 is optional)
