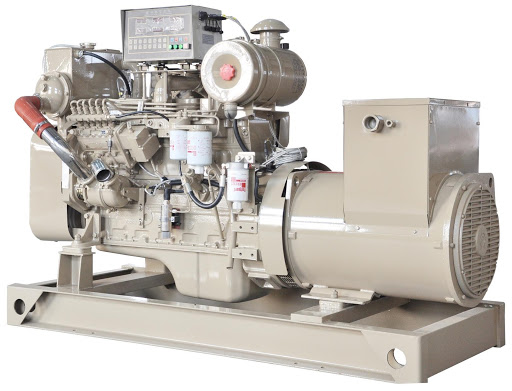

Cummins 180kw Marine Diesel Generator Set 50HZ,3P,4W,400/230V. 1500r.p.m

MODEL CCFJ180
Prime Power (50Hz) 180KW 225 KVA
Standby Power (50Hz) 198KW 248 KVA

Generator Ratings

Voltage(V) Hz Phase P.F

(cosC)

Prime Amps (A) Prime Ratings

(KW/KVA)

415 240 50 3 0.8 313 180 225
400 230 50 3 0.8 325 180 225
380 220 50 3 0.8 342 180 225

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528) ; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Standards

● GB/T13032-1991, ISO9001:2008 and CE Quality Control System.

● As to Classification Society, PRIME POWER supply CCS as standard; ABS,BV,BKI,NK or LR is optional.


Engine Specification

Manufacturer / Model: Cummins 6LTAA8.9-GM200,4-cycle,Water Cooled.
Air Intake System: Turbo, After-cooled
Cylinder Arrangement: 6 cylinders in line
Displacement: 8.9L
Bore and Stroke: 114*145(mm)
Fuel Consumption at 100% Load : 214 g/kw.h
Rated RPM: 1500rpm
Max. Standby Power:200KW/268HP
Governor Type: Electronic Speed Control System


Alternator Specification

Alternator Model HCM274K
Power Capacity 225kVa
Efficiency 95.8%
Type Brushless, Self-excited and AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23(IP44 is optional)
