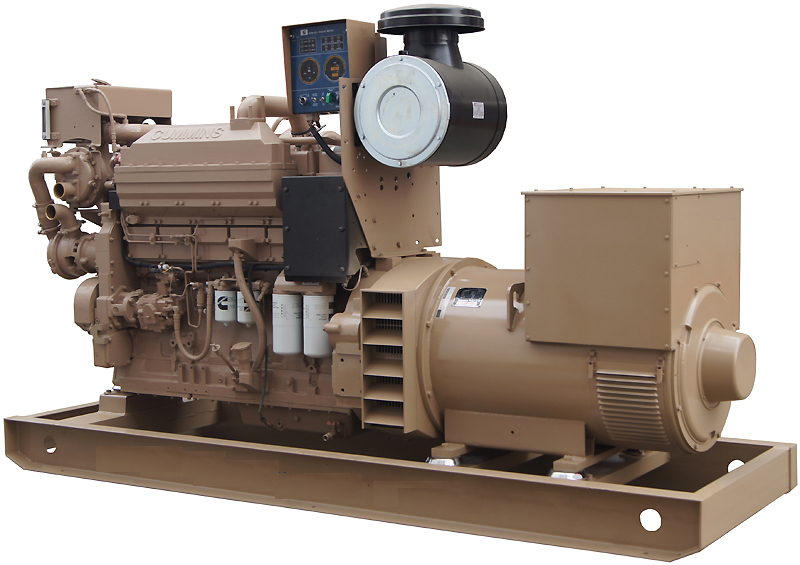

  • Product description: KTA19-DM 400KW Cummins Marine Generator

Cummins 400kw Marine Diesel Generator Set 50HZ,3P,4W,400/230V. 1500r.p.m

Prime Power (50Hz) 400KW 500 KVA
Standby Power (50Hz) 440KW 550 KVA

Generator Ratings

Voltage(V) Hz Phase P.F


Prime Amps (A) Prime Ratings


415 240 50 3 0.8 696 400 500
400 230 50 3 0.8 722 400 500
380 220 50 3 0.8 760 400 500

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528) ; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


● GB/T13032-1991, ISO9001:2008 and CE Quality Control System.

● As to Classification Society, PRIME POWER supply CCS as standard; ABS,BV,BKI,NK or LR is optional.

Engine Specification

Manufacturer / Model: Cummins KTA19-DM,4-cycle,Water Cooled.
Air Intake System: Turbo, Water/Air cooling
Cylinder Arrangement: 6 cylinders in line
Displacement: 19L
Bore and Stroke: 159*159(mm)
Fuel Consumption at 100% Load : 215 g/kw.h
Rated RPM: 1500rpm
Max. Standby Power:448KW/600HP
Governor Type: Electronic Speed Control System
Emission Standard:IMO TIER II, EIAPP Certificate

Alternator Specification

Alternator Model HCM534E
Power Capacity 550kVa
Efficiency 95.8%
Type Brushless, Self-excited and AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23(IP44 is optional)
