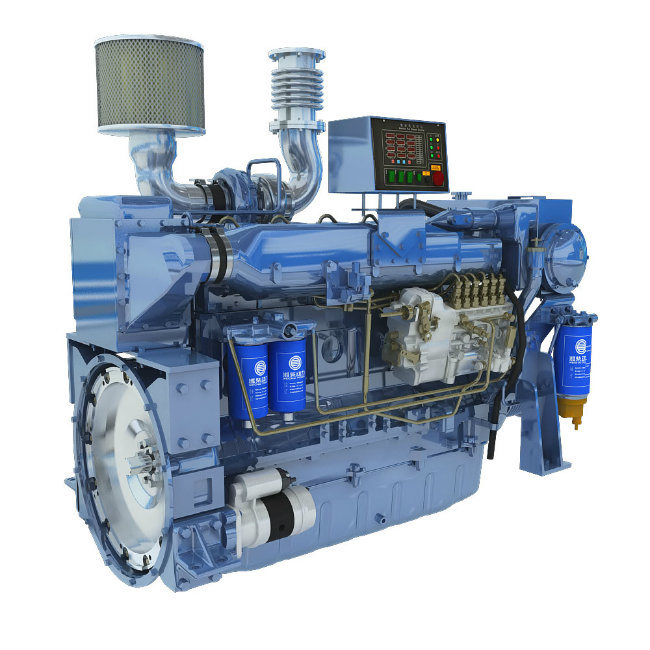

Weichai Marine Propulsion Engine WP4C102-21 and spare parts

General Information of Weichai WP4C102-21Marine Propulsion Engine
Engine Model WP4C102-21
Engine Type 4 Cylinders in Line
Displacement 4.5 L
Bore*Stroke(mm) 105 * 130
Net Weight 600±50Kg
Overall Diemension(L*W*H) 1040mm*620mm*900mm
Rotation direction of crankshaft Clockwise
Start mode Electric start
Technical Specification of Weichai WP4C102-21 Marine Propulsion Engine
Marine Certification CCS
Aspiration Turbocharged
Governor Mechanical
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling System sea and fresh water duel-circulation cooling system
Performance Data of Weichai WP4C102-21 Marine Propulsion Engine
Rated Power/Speed 75Kw/2100rpm
Compression ratio 18
Fuel Consumption @ Rated Power ≤225g/Kw.h
Min. fuel oil consumption 205g/Kw.h
Lub oil and fuel consumption ratio ≤0.3%
As optional of Weichai WP4C102-21 Marine Propulsion Engine
Control Panel As optional
Marine Gearbox As optional of Advance or Fada
