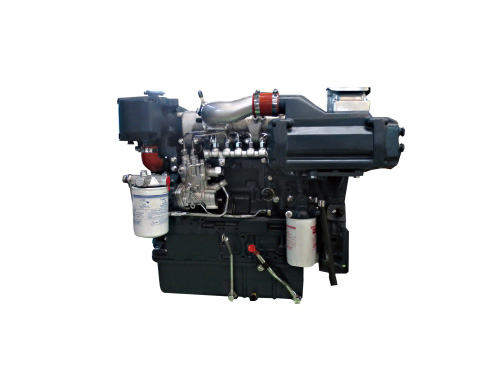

YUCHAI Marine Engine YC4FA130L-C20 and spare parts

YUCHAI Marine Engine YC4FA130L-C20 and spare parts
Product description: YUCHAI Marine Engine YC4FA130L-C20 and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC4FA130L-C20 and spare parts

General Information of Yuchai   YC4FA130L-C20      Marine Engine

Engine Model YC4FA130L-C20

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 4-valve

Piston displacement (L) 2.982L

Net Weight 380kg

Dimensions (L × W × H) (mm) 828×663×724

Bore*Stroke(mm) 96* 103

Compression ratio 16.3:1

Technical Specification of Yuchai  YC4FA130L-C20   Marine Engine

Aspiration Turbocharged

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 95(130)/3100

Overload power / speed (kW (Ps) / r / min) 104.5(140)/3200

Engine Cooling System Water cooled

Performance Data of Yuchai   YC4FA130L-C20         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤195

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HC038A etc.

certificate ZC、CCS

As optional of Yuchai   YC4FA130L-C20 Marine  Engine

Control Panel As optional

PREVIOUS：YUCHAI Marine Engine YC4F115C-31 and spare pa NEXT：YUCHAI Marine Engine YC4D120Z-C20 and spare p

Yuchai marine Enine

YUCHAI Marine Engine YC4FA130L-C20 and spare parts

Inquiry

RELATED PRODUCTS

PRODUCT CATEGORIES

General Information of Yuchai YC4FA130L-C20 Marine Engine
Engine Model	YC4FA130L-C20
Configuration	Vertical,in-line,4-stroke， Direct injection
Number of valves per cylinder	4-valve
Piston displacement (L)	2.982L
Net Weight	380kg
Dimensions (L × W × H) (mm)	828×663×724
Bore*Stroke(mm)	96* 103
Compression ratio	16.3:1

Technical Specification of Yuchai YC4FA130L-C20 Marine Engine
Aspiration	Turbocharged
Governor	Electric starter
Continuous power / speed (kW (Ps) / r / min)	95(130)/3100
Overload power / speed (kW (Ps) / r / min)	104.5(140)/3200
Engine Cooling System	Water cooled

Performance Data of Yuchai YC4FA130L-C20 Marine Engine
Fuel consumption at full load (g / kW ∙ h)	≤195
Oil consumption (g / kW • h)	≤0.8
Crankshaft rotation direction (facing the power output terminal)	Anticlockwise
Adapter gear box	HC038A etc.
certificate	ZC、CCS
As optional of Yuchai YC4FA130L-C20 Marine Engine
Control Panel	As optional
