Chongqing Cummins Engine Co., Ltd(CCEC), Sino-US joint venture company , was established in October,1995, located lieshimu Shapingba District of Chongqing. The Chinese parent company is Chongqing Machinery & Electric Co., Ltd. The foreign parent company is the United States Cummins ( China ) Investment Co., Ltd. , the investment ratio is 50 % of each parts. Now the existing staff of CCEC is more than 1,400 people. The predecessor of CCEC is Chongqing automobile engine factory , began the design and manufacture of diesel engines from the 1950s.
Chongqing Cummins(CCEC), as the beginning of local production of Cummins diesel engine in China , is the largest heavy-duty Cummins engine and high-horsepower Cummins engine manufacturing plant in China . In 1981 , Cummins and former China National Heavy Duty Truck formally signed a license agreement to begin producing large horsepower Cummins diesel engine in Chongqing. After years of development, they continue to deepen bilateral cooperation . Chongqing Cummins(CCEC) has been the rapid growth of business and an important driving force for Cummins Inc in China.

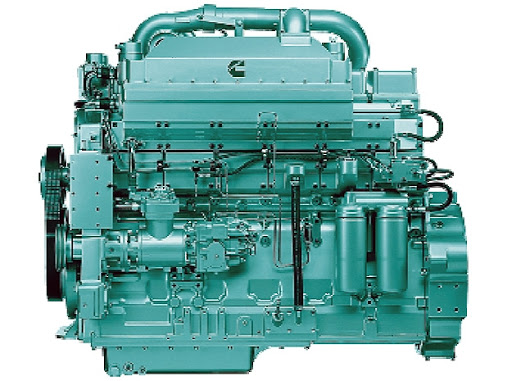

| CCEC Cummins KTAA19-G5 Engine Spare Parts | ||
| Item | Desctriptions | Part Number |
| 1 | CARTRIDGE,LUB | LF670 |
| 2 | ELEMENT,LUBOIL FILTER | LF777 |
| 3 | FILTER,FUEL | FS1000 |
| 4 | CORROSION RESISTOR | WF2076 |
| 5 | CLEANER,AIR | AF872 |
| 6 | BELT,V | 5412996 |
| 7 | BELT,V | 206996 |
| 8 | TURBOCHARGER ,KIT | 3545647 |
| 9 | BEARING,CONNECTING | 205840-20 |
| 10 | SET,MAIN BEARING | AR12270-10 |
| 11 | VALVE,EXHAUST | 3052820 |
| 12 | VALVE,INTAKE | 3088389 |
| 13 | INSERT,VALVE EXHAUST | 3052819 |
| 14 | INSERT,INTAKE VALVE | 3052819 |
| 15 | COLLET,VALVE | 205091 |
| 16 | RETAINER,VALVE SPRING | 205094-20 |
| 17 | ROTATER | 3081081 |
| 18 | SPRING,VALVE | 3633840 |
| 19 | GULVE,VALVE STEM | 3201311 |
| 20 | INJECTOR | 3095773-20 |
| 21 | NOZZLE,PISTION COOLING | 3007517-20 |
| 22 | THERMOSTAT | 3076489-20 |
| 23 | GUAGE,PRESSURE | 3034572-20 |
| 24 | BUSHING | 3043909-20 |
| 25 | BUSHING | 3002834-20 |
| 26 | OIL PUMP | 3047549-20 |
| 27 | MOTOR,STARING | 3043578 |
| 28 | ALTERNATOR | 3016627-20 |
| 29 | WATER,PUMP | 3088377 |
| 30 | TURBOCHARGER | 3594134-20/4061405-20 |
| 31 | PISTON,ENGINE | 4913795 |
| 32 | PIN,PISTON | 205200 |
| 33 | PISTON RING | 4081176/3090450/3090460 |
| 34 | LINER,CYLINDER | 4009220-20 |
| 35 | SEAL,DREVICE | 3081489 |
| 36 | SEAL,O RING | 3014668 |
| 37 | SEAL,O RING | 3011076 |
| 38 | CORE,COOLER | 3331668 |
| 39 | ROD,PUSH | 205492 |
| 40 | ROD,PUSH | 3017961-20 |
| 41 | SET,UPPER ENGINE GSK | 4295803-10 |
| 42 | SET,LOWER ENGINE GSK | 4295804-10 |
| 43 | SWITCH,MAGNETIC | 3050692-20 |
| 44 | FRONT OIL SEAL | 3016787 |
| 45 | REAR OIL SEAL | AR10591 |
| 46 | FAN,ENGINE | 4913821 |
| 47 | SPEED CONTROL GOVERNOR | 3044196 |
| 48 | FUEL PUMP | 3061417 |
| 49 | VALVE,SHUTOFF | 3018453 |
| 50 | PULLY,ALTERNATOR | 3002331 |
| 51 | CYLINDER HEAD ASSEMBLY | 3013962 |
| 52 | CYLINDER HEAD | 3081064 |
| 53 | GASKET,CYLINDER HEAD | 3166289 |
| 54 | CYLINDER BLOCK | 3028438 |
| 55 | FLYWHEEL | 3024105 |
| 56 | CAMSHAFT | 3076767 |
| 57 | CONNECTING ROD | 3811995 |
| 58 | BUSHING,CONNECTION ROD | 3043909 |
| 59 | AFTER COOLER,CORE | 3001299 |
| 60 | STL OIL CONTROL VALVE | 3096081 |
| 61 | MANIFOLD,EXHAUST,WET | 3655046 |
