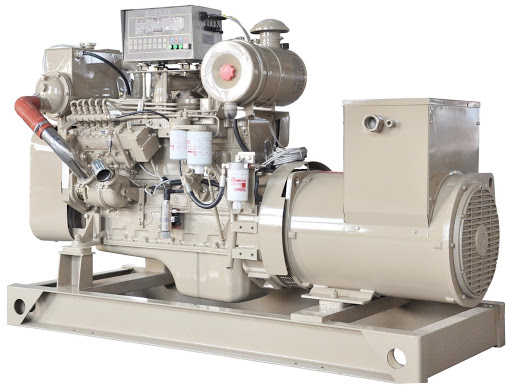

Cummins 30kw Marine Diesel Generator Set 50HZ,3P,4W,400/230V. 1500r.p.m

MODEL CCFJ30
Prime Power (50Hz) 30KW 37.5 KVA
Standby Power (50Hz) 33KW 41.25 KVA

Generator Ratings

Voltage(V) Hz Phase P.F

(cosC)

Prime Amps (A) Prime Ratings

(KW/KVA)

415 240 50 3 0.8 69.5 30 37.5
400 230 50 3 0.8 72.2 30 37.5
380 220 50 3 0.8 75.9 30 37.5

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528) ; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Standards

● GB/T13032-1991, ISO9001:2008 and CE Quality Control System.

● As to Classification Society, PRIME POWER supply CCS as standard; ABS,BV,BKI,NK or LR is optional.


Engine Specification

Manufacturer / Model: Cummins 4BTA3.9-GM47,4-cycle,Water Cooled.
Air Intake System: Turbo
Cylinder Arrangement: 4 cylinders in line
Displacement: 3.9L
Bore and Stroke: 102*114(mm)
Fuel Consumption at 100% Load : 216 g/kw.h
Rated RPM: 1500rpm
Max. Standby Power:47KW/64HP
Governor Type: Electronic Speed Control System


Alternator Specification

Alternator Model HCM224C
Power Capacity 37.5kVa
Efficiency 94.8%
Type Brushless, Self-excited and AVR
Power factor 0.8
Insulation Grade H
Protection Grade IP23(IP44 is optional)
