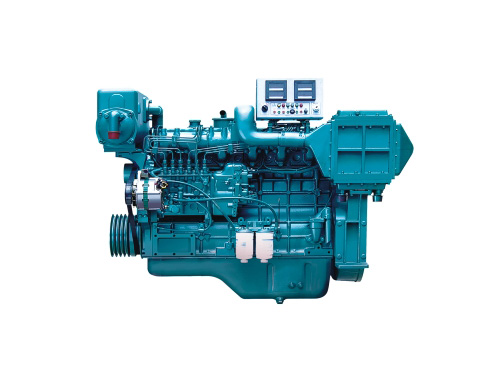

YUCHAI Marine Engine YC6105CA and spare parts

YUCHAI Marine Engine YC6105CA and spare parts
Product description: YUCHAI Marine Engine YC6105CA and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6105CA and spare parts

General Information of Yuchai   YC6105CA      Marine Engine

Engine Model YC6105CA

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 6.494L

Net Weight 700kg

Dimensions (L × W × H) (mm) 1252×780×1075

Bore*Stroke(mm) 105* 125

Compression ratio 16.5:1

Technical Specification of Yuchai  YC6105CA   Marine Engine

Aspiration Naturally aspirated

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 53(72)/1500

Overload power / speed (kW (Ps) / r / min) 58.3(80)/1548

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6105CA         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤200

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HC65、120C、MB170 etc.

certificate ZC、CCS

As optional of Yuchai   YC6105CA Marine  Engine

Control Panel As optional

PREVIOUS：YUCHAI Marine Engine YC6105CA1 and spare part NEXT：YUCHAI Marine Engine YC6B100-C20 and spare p

Yuchai marine Enine

YUCHAI Marine Engine YC6105CA and spare parts

Inquiry

RELATED PRODUCTS

PRODUCT CATEGORIES

General Information of Yuchai YC6105CA Marine Engine
Engine Model	YC6105CA
Configuration	Vertical,in-line,4-stroke， Direct injection
Number of valves per cylinder	6-valve
Piston displacement (L)	6.494L
Net Weight	700kg
Dimensions (L × W × H) (mm)	1252×780×1075
Bore*Stroke(mm)	105* 125
Compression ratio	16.5:1

Technical Specification of Yuchai YC6105CA Marine Engine
Aspiration	Naturally aspirated
Governor	Electric starter
Continuous power / speed (kW (Ps) / r / min)	53(72)/1500
Overload power / speed (kW (Ps) / r / min)	58.3(80)/1548
Engine Cooling System	Water cooled

Performance Data of Yuchai YC6105CA Marine Engine
Fuel consumption at full load (g / kW ∙ h)	≤200
Oil consumption (g / kW • h)	≤0.8
Crankshaft rotation direction (facing the power output terminal)	Anticlockwise
Adapter gear box	HC65、120C、MB170 etc.
certificate	ZC、CCS
As optional of Yuchai YC6105CA Marine Engine
Control Panel	As optional
