Yuchai marine Enine

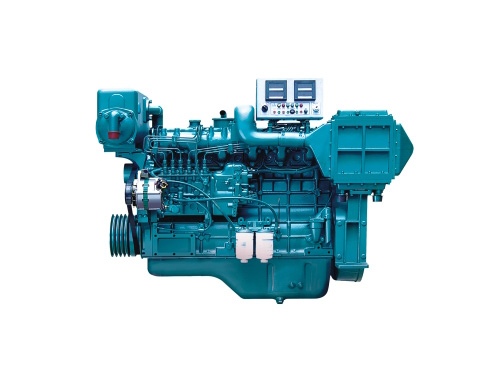

YUCHAI Marine Engine YC6B150C and spare parts

YUCHAI Marine Engine YC6B150C and spare parts
Product description: YUCHAI Marine Engine YC6B150C and spare parts
INQUIRY EMAIL

YUCHAI Marine Engine YC6B150C and spare parts

General Information of Yuchai   YC6B150C      Marine Engine

Engine Model YC6B150C

Configuration Vertical,in-line,4-stroke，
Direct injection

Number of valves per cylinder 6-valve

Piston displacement (L) 6.871L

Net Weight 750kg

Dimensions (L × W × H) (mm) 1420×810×1020

Bore*Stroke(mm) 108* 125

Compression ratio 17.5:1

Technical Specification of Yuchai  YC6B150C   Marine Engine

Aspiration Turbocharged

Governor Electric starter

Continuous power / speed (kW (Ps) / r / min) 110(150)/1800

Overload power / speed (kW (Ps) / r / min) 121(165)/1858

Engine Cooling System Water cooled

Performance Data of Yuchai   YC6B150C         Marine  Engine

Fuel consumption at full load (g / kW ∙ h) ≤198

Oil consumption (g / kW • h) ≤0.8

Crankshaft rotation direction (facing the power output terminal) Anticlockwise

Adapter gear box HCQ138、HC65、120C etc.

certificate ZC、CCS

As optional of Yuchai   YC6B150C Marine  Engine

Control Panel As optional
