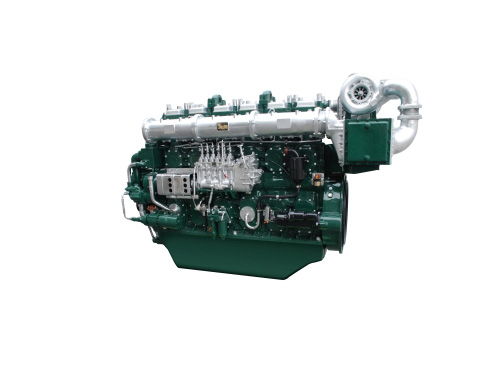

 YUCHAI Marine Engine YC6C925L-C20 and spare parts

General Information of Yuchai   YC6C925L-C20      Marine Engine
Engine Model YC6C925L-C20
Configuration Vertical,in-line,4-stroke,

Direct injection

Number of valves per cylinder 6-valve
Piston displacement (L) 39.58 L
Net Weight 4700kg
Dimensions (L × W × H) (mm) 2760×1285×1940
Bore*Stroke(mm) 200* 210
Compression ratio 14.5:1
Technical Specification of Yuchai  YC6C925L-C20     Marine Engine
Aspiration Turbocharged
Governor Electric starter (starter optional)
Continuous power / speed (kW (Ps) / r / min) 680(925)/1350
Overload power / speed (kW (Ps) / r / min) 748(1020)/1393
Engine Cooling System Water cooled
Performance Data of Yuchai  YC6C925L-C20          Marine  Engine
Fuel consumption at full load (g / kW ∙ h) ≤195
Oil consumption (g / kW • h) ≤0.8
Oil Capacity (L) 150-180
Minimum stable speed (r / min) ≤608
Crankshaft rotation direction (facing the power output terminal) Counterclockwise
Adaptation marine units 600kw, 800kw, etc.
certificate ZC、CCS、IMO
As optional of Yuchai   YC6C925L-C20                    Marine  Engine
Control Panel As optional
